lib.mEoS.R1224ydZ¶

Fluid info¶

CAS Number: 111512-60-8
Formula: CHCl=CFCF3
Synonym: R-1224yd(Z)
Molecular weigth: 148.4867 g/mol
Tc: 428.6900 K
Pc: 3.3340 MPa
ρc: 539.3037 kg/m³
Tt: 157.8000 K
Tb: 288.0040 K
Acentric factor: 0.3247
Dipole moment: 1.4700 Debye

Equation of state¶

Akasaka, R., Fukushima, M., Lemmon, E.W.; A Helmholtz Energy Equation of State for cis‐1‐Chloro‐2,3,3,3‐tetrafluoro‐1‐propene [R‐1224yd(Z)]. Int. J. Thermophysics 44 (2023) 166, http://dx.doi.org/10.1007/s10765-023-03266-3
Akasaka, R., Fukushima, M., Lemmon, E.W.; A Helmholtz Energy Equation of State for Cis-1-chloro-2,3,3,3-tetrafluoropropene (R-1224yd(Z)). 21st European Conference on Thermophysical Properties, Graz, Austria, September 3-8, 2017

Viscosity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Thermal Conductivity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Calculation example¶

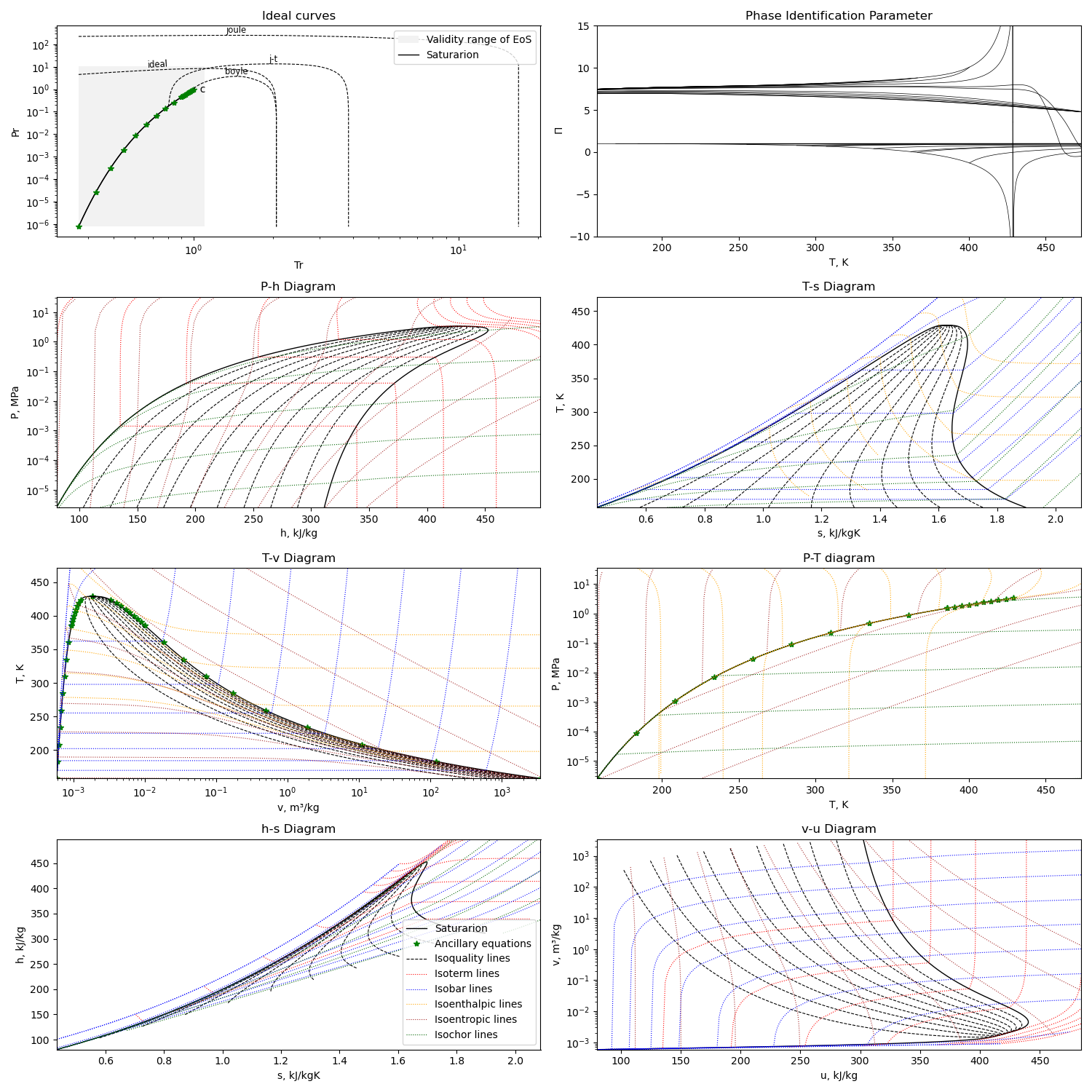

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/R1224ydZ.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py R1224ydZ
