lib.mEoS.R1130¶

Fluid info¶

CAS Number: 156-60-5
Formula: CHCl=CHCl
Synonym: R1130
Molecular weigth: 96.94328 g/mol
Tc: 515.6900 K
Pc: 5.2555 MPa
ρc: 440.1225 kg/m³
Tt: 223.3100 K
Tb: 320.3670 K
Acentric factor: 0.194
Dipole moment: 0.0 Debye

Equation of state¶

Huber, M.L., Kazakov, A.F., Lemmon, E.W.; Equation of State for the Thermodynamic Properties of Trans-1,2-dichloroethene [R-1130(E)]. Int. J. Thermophys. 46 (2025) 76, http://dx.doi.org/10.1007/s10765-025-03535-3

Calculation example¶

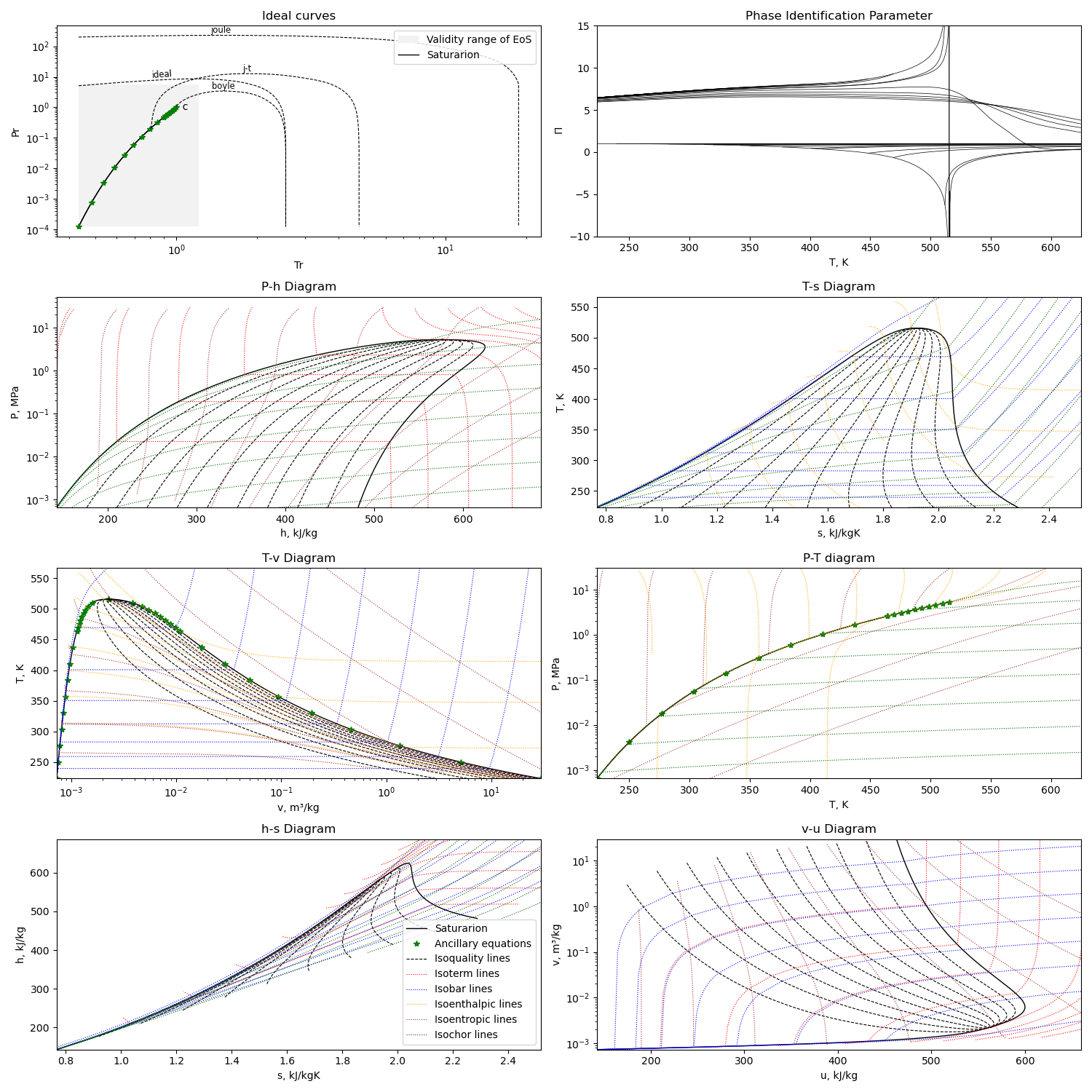

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/R1130.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py R1130
