tools.UI_confTransport module¶

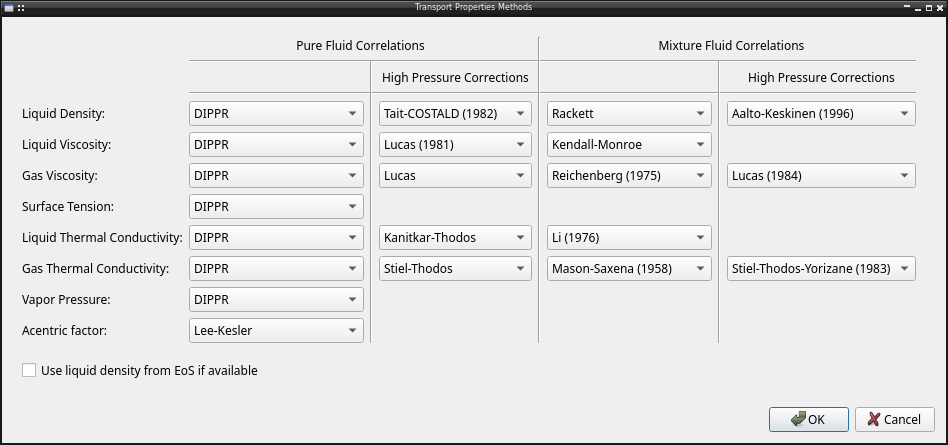

Dialog to configure the methods used in project to calculate the transport properties of stream

The methods are defined in the lib.compuestos module for pure fluid and in lib.mezcla module para mezclas

The module include all related transport properties configuration:

UI_confTransport_widget: Transport properties widget, to use in whatever need, dialog, wizard…
Dialog: Standalone dialog

API reference¶

class tools.UI_confTransport.UI_confTransport_widget(config=None, parent=None)[source]¶

Bases: QWidget

Transport properties widget, tu use in dialog, wizard…

Methods

`default`(config)	Default configuration
`value`(config)	Function to wizard result

__init__(config=None, parent=None)[source]¶: Constructor, opcional config parameter with project config

class tools.UI_confTransport.Dialog(config=None, parent=None)[source]¶

Bases: QDialog

Transport properties dialog

Methods

value(config)

Function to wizard result
