lib.mEoS.VinylCl¶

Fluid info¶

CAS Number: 75-01-4
Formula: CH2CHCl
Synonym: R-1140
Molecular weigth: 62.49822 g/mol
Tc: 425.0000 K
Pc: 5.6003 MPa
ρc: 353.1149 kg/m³
Tt: 119.3100 K
Tb: 259.2600 K
Acentric factor: 0.16
Dipole moment: 0.0 Debye

Equation of state¶

Thol, M., Fenkl, F., Lemmon, E.W.; A Fundamental Equation of State for Chloroethene for Temperatures from the Triple Point to 430 K and Pressures to 100 MPa. Int. J. Themophysics 42 (2022) 41, http://dx.doi.org/10.1007/s10765-021-02961-3

Viscosity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Thermal Conductivity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Calculation example¶

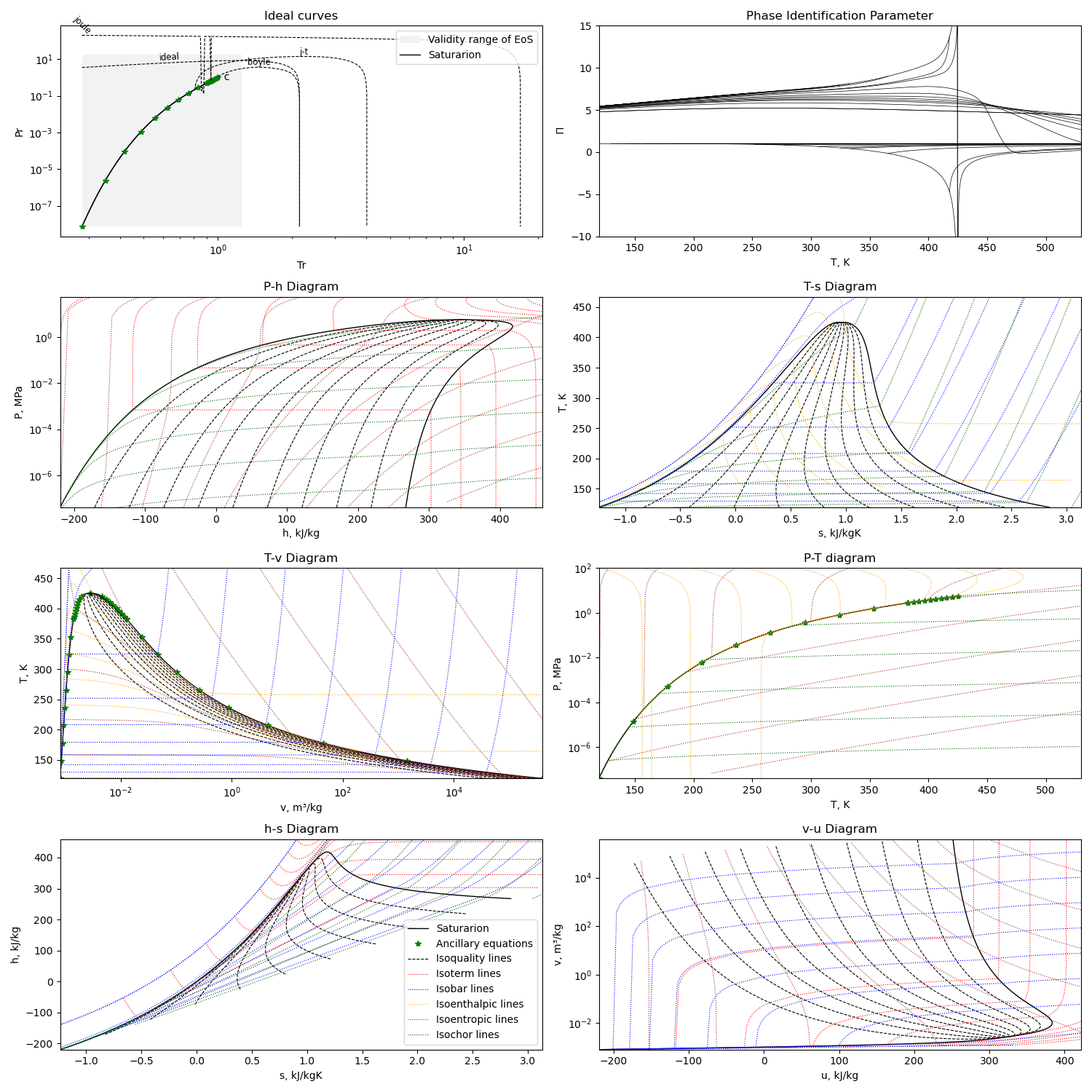

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/VinylCl.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py VinylCl
