lib.mEoS.RE1132

Fluid info

  • CAS Number: 1630-78-0

  • Formula: CHF=CHF

  • Synonym: RE1132

  • Molecular weigth: 64.035 g/mol

  • Tc: 348.8200 K

  • Pc: 5.1737 MPa

  • ρc: 434.9898 kg/m³

  • Tt: 184.9000 K

  • Tb: 220.5100 K

  • Acentric factor: 0.245

  • Dipole moment: 0.0 Debye

Equation of state

  • Akasaka, R., Lemmon, E.W.; A Helmholtz Energy Equations of State for Calculations of Thermodynamic Properties of trans-1,2-Difluoroethene [R-1132(E)]. Int. J. Thermophys. 45(12) (2024) 174, http://dx.doi.org/10.1007/s10765-024-03447-8

Calculation example

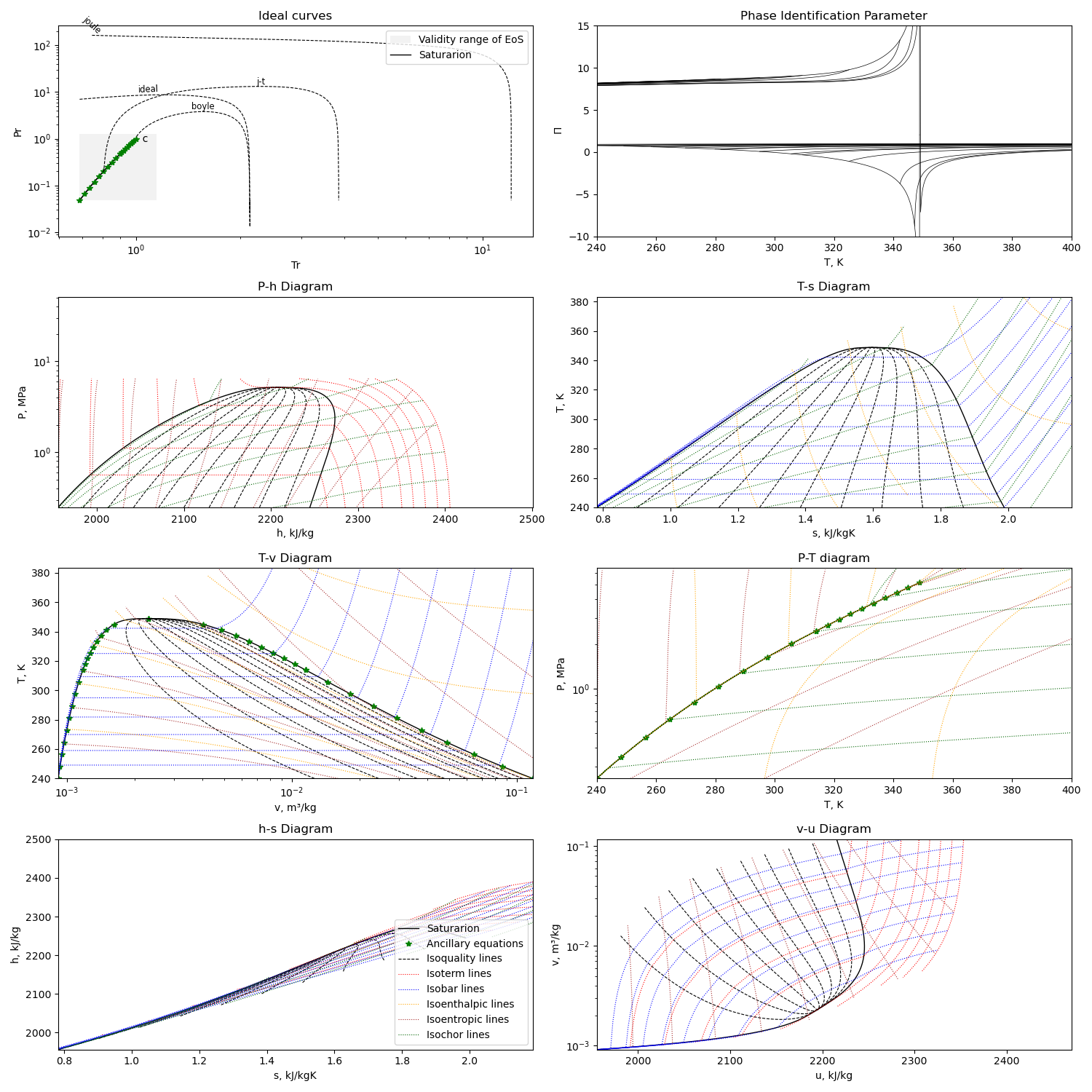

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/RE1132.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py RE1132
