lib.mEoS.MEA¶

Fluid info¶

CAS Number: 141-43-5
Formula: CH2OH-CH2-NH2
Molecular weigth: 61.0831 g/mol
Tc: 671.4000 K
Pc: 8.1250 MPa
ρc: 329.2379 kg/m³
Tt: 283.7000 K
Tb: 443.5640 K
Acentric factor: 0.573
Dipole moment: 0.7765 Debye

Equation of state¶

Herrig, S.; New Helmholtz-Energy Equations of State for Pure Fluids and CCS-Relevant Mixtures. Ph.D. thesis. Bochum: Ruhr-Universität Bochum, 2018.

Viscosity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Thermal Conductivity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Calculation example¶

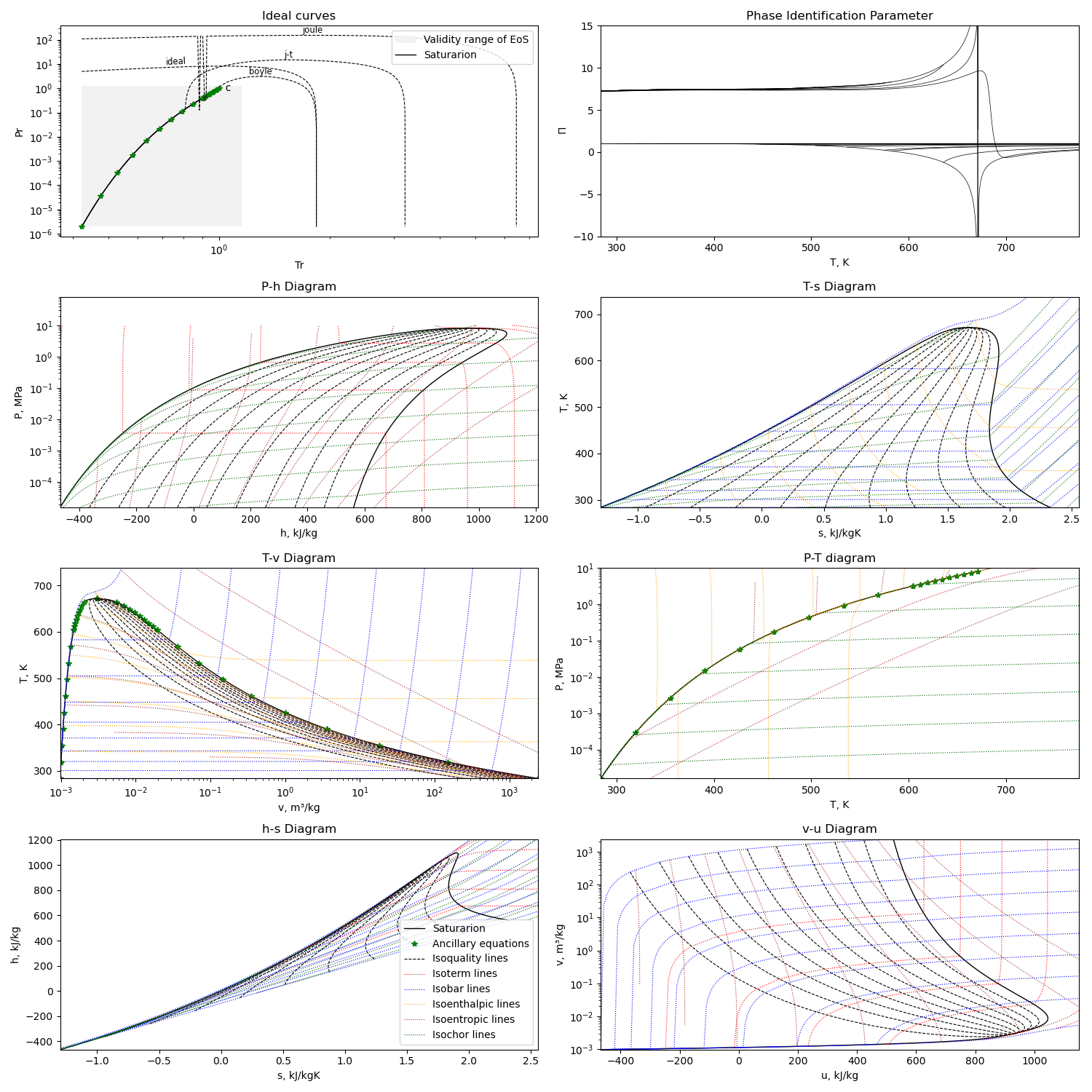

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/MEA.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py MEA
