lib.mEoS.Cyclobutene¶

Fluid info¶

CAS Number: 822-35-5
Formula:
Molecular weigth: 54.09044 g/mol
Tc: 448.0000 K
Pc: 5.1495 MPa
ρc: 279.6476 kg/m³
Tt: 150.0000 K
Tb: 275.7300 K
Acentric factor: 0.163
Dipole moment: 0.0 Debye

Equation of state¶

Huber, M.L., Lemmon, E.W., Bell, I.H., McLinden, M.O.; The NIST REFPROP Database for Highly Accurate Properties of Industrially Importants Fluids. Ind. Eng. Chem. Res. 61(42) (2022) 15449-15472, http://dx.doi.org/10.1021/acs.iecr.2c01427

Viscosity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Thermal Conductivity¶

Huber, M.L.; Models for Viscosity, Thermal Conductivity, and Surface Tension of Selected Pure Fluids as Implemented in REFPROP v10.0. NISTIR 8209, http://dx.doi.org/10.6028/NIST.IR.8209

Calculation example¶

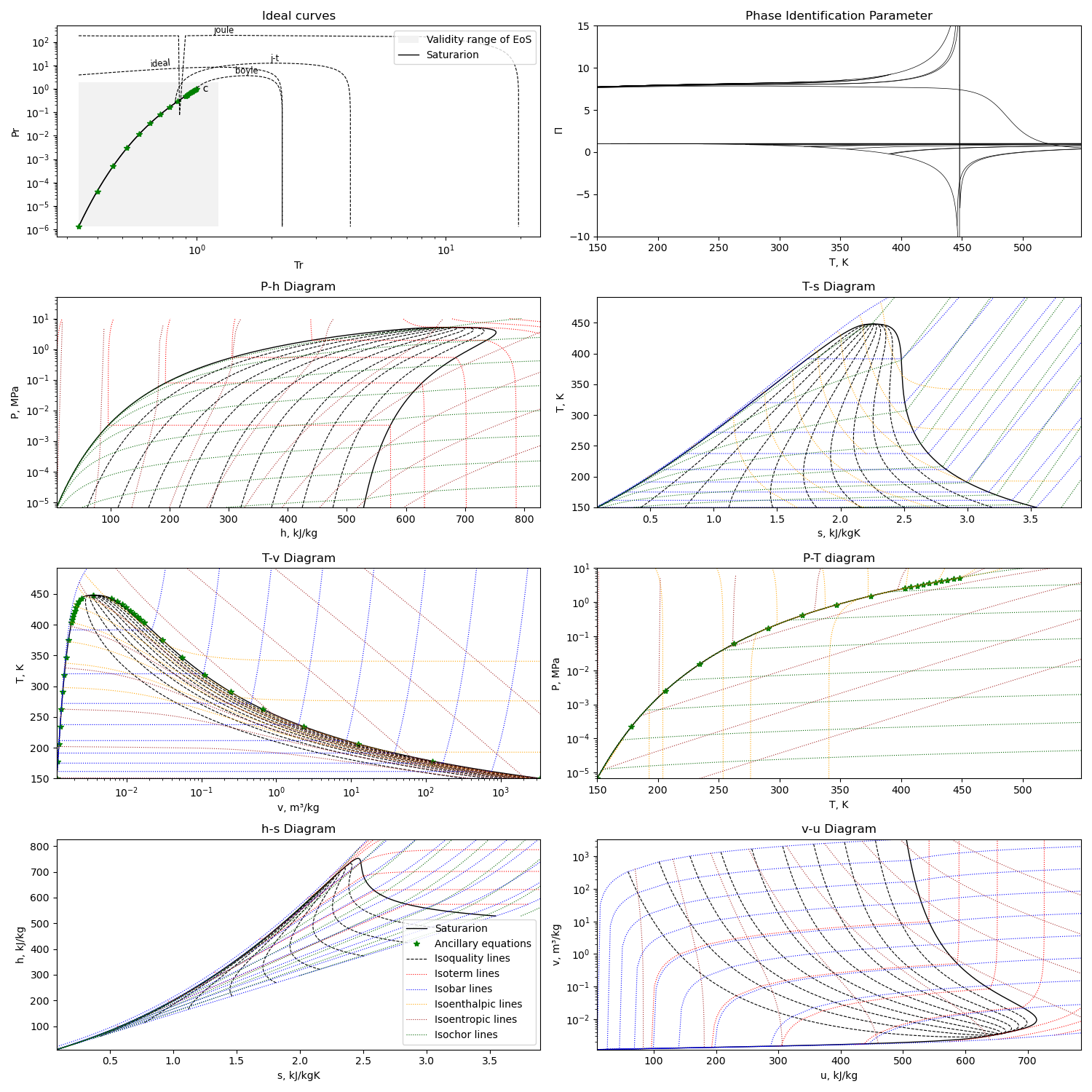

Using the first option for equation of state, we can get this diagram plots with the liquid-gas saturation region:

_images/Cyclobutene.png

The diagram is generated with this module running with the compound name as parameter or edited in file

python3 plotMEoS.py Cyclobutene
